PF Series

PF Series

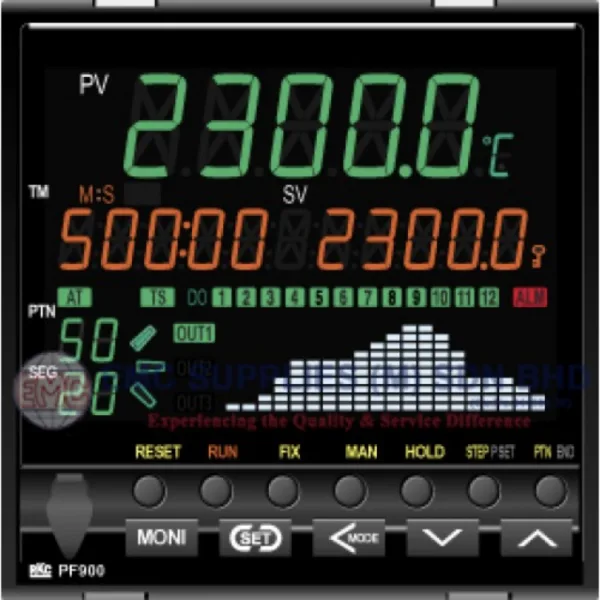

The PF900 is a powerful ramp/soak controller with a large program storage capacity of 1024 segments (99 patterns with 10 segments each to 10 patterns with 99 segments each). This 1/4 DIN controller offers guaranteed soak for precise, critical temperature control requirements. With a ±0.1% accuracy, 0.1 sec. sampling time, five digit display, universal input and multi-level PID or segment PID, this instrument is adaptable to a wide range of process applications. Standard features include three mode operation, four digital inputs, four digital output and Wait functions, temperature alarms, and constant slope PV start.

Request Sample

Product Highlights

Some of the optional features include analog outputs and digital communications.

  • High accuracy ramp/soak controller
  • Up to 99 patterns
  • Up to 1024 segments (Up to 99 segments per pattern. Pattern link possible)
  • Autotuning PID control
  • Autotuning Heat/Cool PID control
  • Position proportional PID control for valve
  • 4 time-signal or 4 segment signal outputs (maximum 8 points)
  • 11 digital inputs
  • Universal input
  • Segment PID or 8-level PID
  • Auto/Manual, Fixed setpoint control
  • Inter-controller Communication
  • USB communication via RS-232C, RS-422A, RS-485 ANSI or Modbus protocol (Loader communication)
  • NEMA type 3: IP55 (Waterproof)
  • Size: 1/4 DIN (96x96x80mm)
