- Fast Response
- Easy temperature measurement
Temperature can be measured by simply applying the tip of the sensor to a tiny object or inserting the sensor into tiny gaps.
- Sheet Material: Glass Cloth Base Sheet
- Operating temperature: 0 to 300°C (32 to 577°F)
- Thermocouple: Type K
- Sensor Length: 100/300/500mm Type
- Sensor Thickness: 0.34mm
- Element wire diameter: 50µm/100µm (100mm Type), 100µm (300/500mm) Type
| Model Code | Contents |
|---|---|
| ST-50B-100-4 | Length: 104mm, Element Wire Diameter 50µm, 5 pieces per set |
| ST-50B-100-4-D | Length: 104mm, Element Wire Diameter 100µm, 5 pieces per set |
| ST-50B-300-4 | Length: 304mm, Element Wire Diameter 100µm, 1 piece |
| ST-50B-500-4 | Length: 504mm, Element Wire Diameter 100µm, 1 piece |

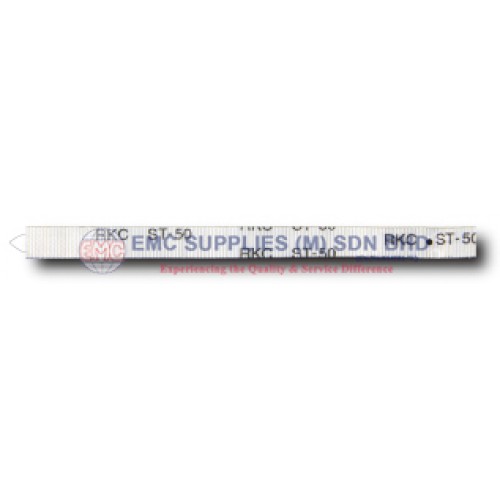

RKC Exposed Tip Type Temperature Sensor ST-50B
- Brand: RKC
- Product Code: RKC ST-50B
- Availability: Pre-Order
